E-630: Rohde & Schwarz ESM-180
E-630, VHF monitoring receiver Rohde & Schwarz ESM-180; developed and produced by Rohde & Schwarz, Munich.
In around 1960, the Swiss Army acquired the ESM-180 (BN 15073) VHF surveillance receiver from Rohde & Schwarz in Munich.
The single / double conversion receiver covers the VHF range from 30 - 180 MHz. so the FM broadcast band is included, as well as the military VHF communication band.
Technical Data
- Frequency range: 30 - 42,5 / 42,5 - 61 / 61 - 87,5 / 87,5 - 126 / 126 - 180 MHz
- Analog dial, dial resolution 70 - 150 kHz
- Sensitivity: AM (A3) narrow < 2 μV, wide < 4 μV; F3 (FM) narrow < 1 μV, wide < 2 μV / Selectivity -6 dB: 40 / 200 kHz
Power Supply
- Mains: 115 - 235 V AC
Dimensions
- 560 x 358 x 216 mm; 28 kg
Accessories
Operation

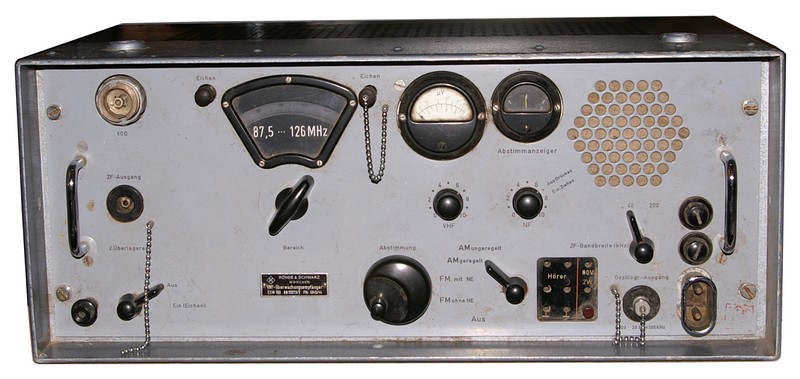

The Rohde & Schwarz ESM-180 / E-630 is a quite heavy hollow state VHF surveillance receiver, in it's steel desktop cabinet, it's dimensions are 56 x 35,8 x 21,6 cm and it's weight 28 kg. The receiver can be powered from mains 115 - 235 V and has an internal small monitor speaker.
The 60 ohms coaxial antenna connector is a so called Dezifix connector, which is not common anymore nowadays, it is located in the left upper corner of the front panel.
At the left side, you find the sector shaped frequency dial; when the big waveband selector is turned, the respective dial is visible in a small window. The main tuning knob is located at the right hand slightly below.
At it's right, you find the main switch with the positions FM (frequency modulation) with deemphasis (50 usec.) active or off, AM (amplitude modulation) with AGC active or switched off; at it's right, you find the headphones jacks.
Two rotary controls act as RF gain control (active only in the position AM - no automatic control) and AF gain / volume control, when this one is pulled out, the monitor speaker is engaged. The two meters act as signal strength indicator and as center indicator for FM signals.
To operate the receiver, connect a VHF antenna to the Dezifix antenna connector (the active pin is in the middle), set the main / operation switch to „FM o.E.“ if you want to control the emission of a military VHF transceiver in narrow band FM mode, set the bandwidth to 40 kHz, then select the frequency range and tune to the signal. When the AF gain control switch is pulled out, you should hear some hiss in the monitor speaker. To listen to a FM broadcast signal, select the mode „FM m.E.“ (Deemphasis 50 μsec. active) and a bandwidth of 200 kHz.
To tune in to the weather report of the nearest airport, use the AM mode „AM geregelt“ and look out for signals in the Air traffic band above 120 MHz. For special situations, the receiver provides a second heterodyne to receive CW transmissions.
Technical Principle
The signal coming from the antenna socket is fed after a band pass filter to a first RF amplifier (with automatic gain control) (V1: EC80) and a second RF amplifier stage (V2: EF42) and then to the first mixer (V3: EF42), with the oscillator frequency (V4: EC81), the first intermediate frequency of 21,4 MHz is generated.
With the frequency calibration / second oscillator active, (V13: EAF42) (Switch located in the left lower corner of the front panel), the signal with it's harmonics every 21,4 MHz can be fed to the second tuned circuit, after mixing with the intermediate frequency, the main oscillator can be aligned by tuning to zero beat with the calibration control at the right next to the main frequency dial window.
After four I.F. amplifier stages (V5, V6, V7, V8: all EF42), the signal is fed to the demodulator (V8: EAF42). In AM mode, this tube acts as demodulator diode, im FM mode as limiter stage. V9 (EF42) amplifies the signal to feed an oscilloscope to visualize the signal.
When you switch from I.F. bandwidth 200 kHz to narrow band FM 40 kHz, V12 acts as 18 MHz oscillator (V12: EAF42), the I.F. of 21,4 MHz will be mixed to generate a second intermediate frequency of 3,4 MHz, for this lower I.F., there are narrower bandwith filters switched in the I.F. strip to achieve an FM narrow selectivity of 40 kHz.
The AM signal is fed after demodulation directly to the AF amplifier; in FM mode, the AF is generated in two diodiodes (V10, V11: EB41 each) which act as two separate ratio detectors for bandwidth narrow and wide demodulator stages. The audio signal is fed to an AF preamplifier stage (V14: EAF42) and the AF final stage (V15: EL41), the set has an audio output of 3 W.
With the bandwidth switched to „narrow“, the audio frequency response is reduced to 300 Hz - 3 kHz, in position „wide“ frequency response is 30 Hz - 15 kHz.
In the power supply unit, two rectifier valves EZ40 (V16 / V17: EZ40) generate the plate voltage, all operation voltages are stabilised with valves V18 - V20 (PL81, EF40, stabilizer tube 85A1).
Valve setup
V1 (EC80, 1st RF amplifier stage); V2 (EF42, 2nd RF amplifier stage); V3 (EF42, 1st mixer); V4 (EC81, oscillator); V5, V6, V7 (three EF42, IF amplifier stages); V8 (EAF42 demodulator, diode or limiter); V9 (EF42, IF output); V10, V11 (two EB41, discriminator); V12 (EAF42, oscillator 18 MHz); V13 (EAF42, calibration generator); V14 (EAF42, AF preamplifier); V15 (EL41, AF power amplifier.
V16, V17 (each EZ40, plate voltage rectifier, V18, V19, V20 (stabilizers 85A1, EF40, PL81).
Development
The ESM-180 was developed by Rohde & Schwarz, Munich around 1950.
