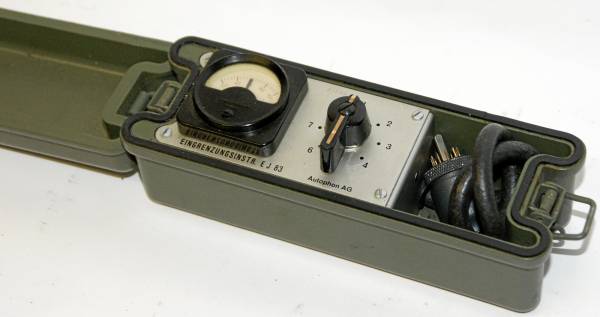

Diagnostic Instrument EJ 83; manufactured by Autophon AG, Solothurn.

• Measuring instrument: Microamperemeter ± 100 μA

• mm, kg

The most important voltages and functions of the SE-206/209 family of radio sets can be tested with the EJ 83 diagnostic instrument.

For this, the diagnostic instrument connected to the measurements socket of the wireless set or the matching SG94 power supply and the various measurements can be carried out using the selector switch.

The measurement switch of the T-105 / T-107 test set with its eight positions also has a very similar function.

The EJ 83 diagnostic instrument can be used for a quick localisation of the most important problems on the radio sets of the SE-206/209 radio family.
