Test Set T-101

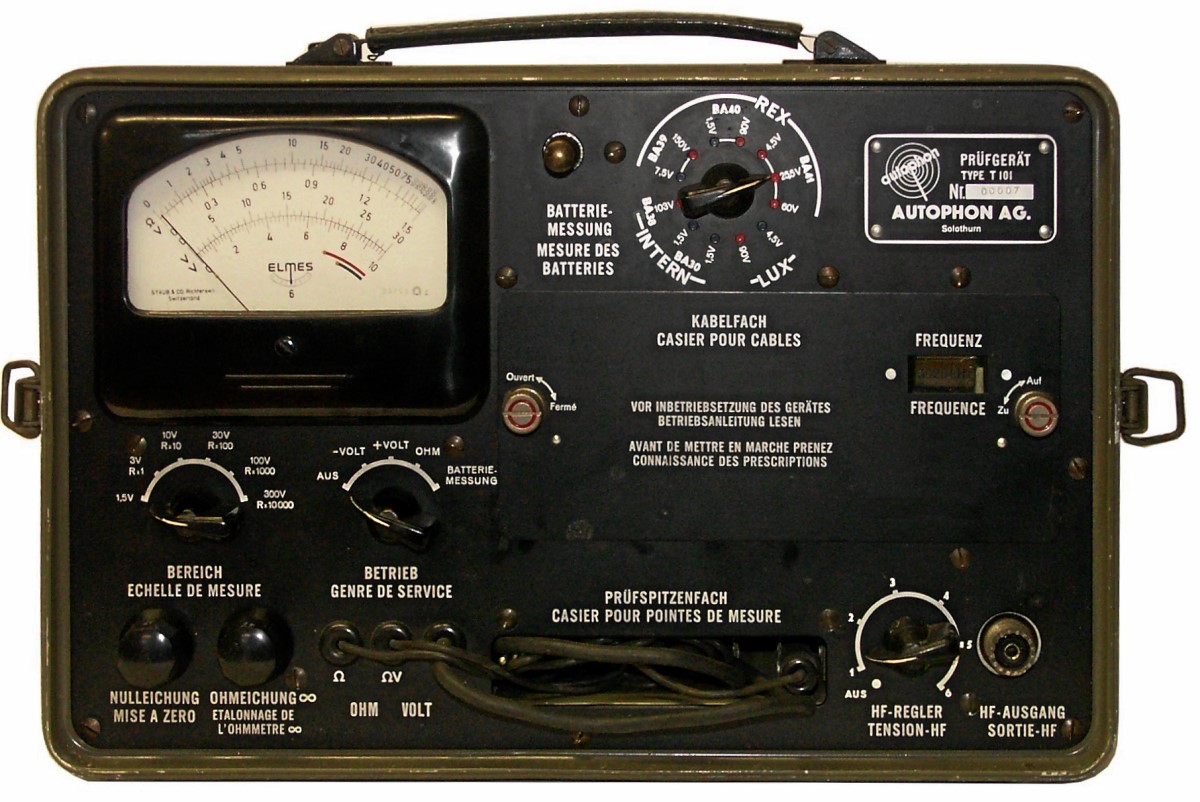

Test set T-101; manufactured by Autophon AG, Solothurn.

In order to enable signal mechanics to test and align the army radio sets and to do simple repairs, test set were developed to match some of the sets.

Autophon developed the T-101 test set for simple checks on the SE-201 (REX) and SE-200 (LUX) radios.

Technical data

  • Principle: Voltmeter heater / plate batteries, tube voltmeter, RF oscillator

Power supply

Dimensions

  • 360 x 230 x 180 mm, 5.3 kg

Accessories


Operation

The T-101 tester is designed for servicing the LUX / SE-200 and REX / SE-201 radios. It comes in a 36 x 23 x 18 cm metal cabinet and weighs 5.3 kg.

The T-101 essentially consists of a tube voltmeter/ohmmeter (1LE3) and an RF generator (3D6).

The tube voltmeter has a measurement range from 1.5 - 300 volts DC and can also be set as an ohms meter.

In the battery measurement position, the heating and plate batteries commonly used for the corresponding radio equipment can be checked.

A radio frequency generator feds an RF signal in the range 4.745 - 7.245 MHz to the output connector in the bottom right-hand corner of the front panel, depending on the channel crystal used.

Technical principle

RF oscillator (3D6), crystal-controlled.

Tube assembly

V1 (3D6, HF oscillator).

Development

Use

The T-101 test set was designed for maintenance work and measurements on the SE-200 (LUX) and SE-201 (REX) radios.

Technical documentation

Further information
